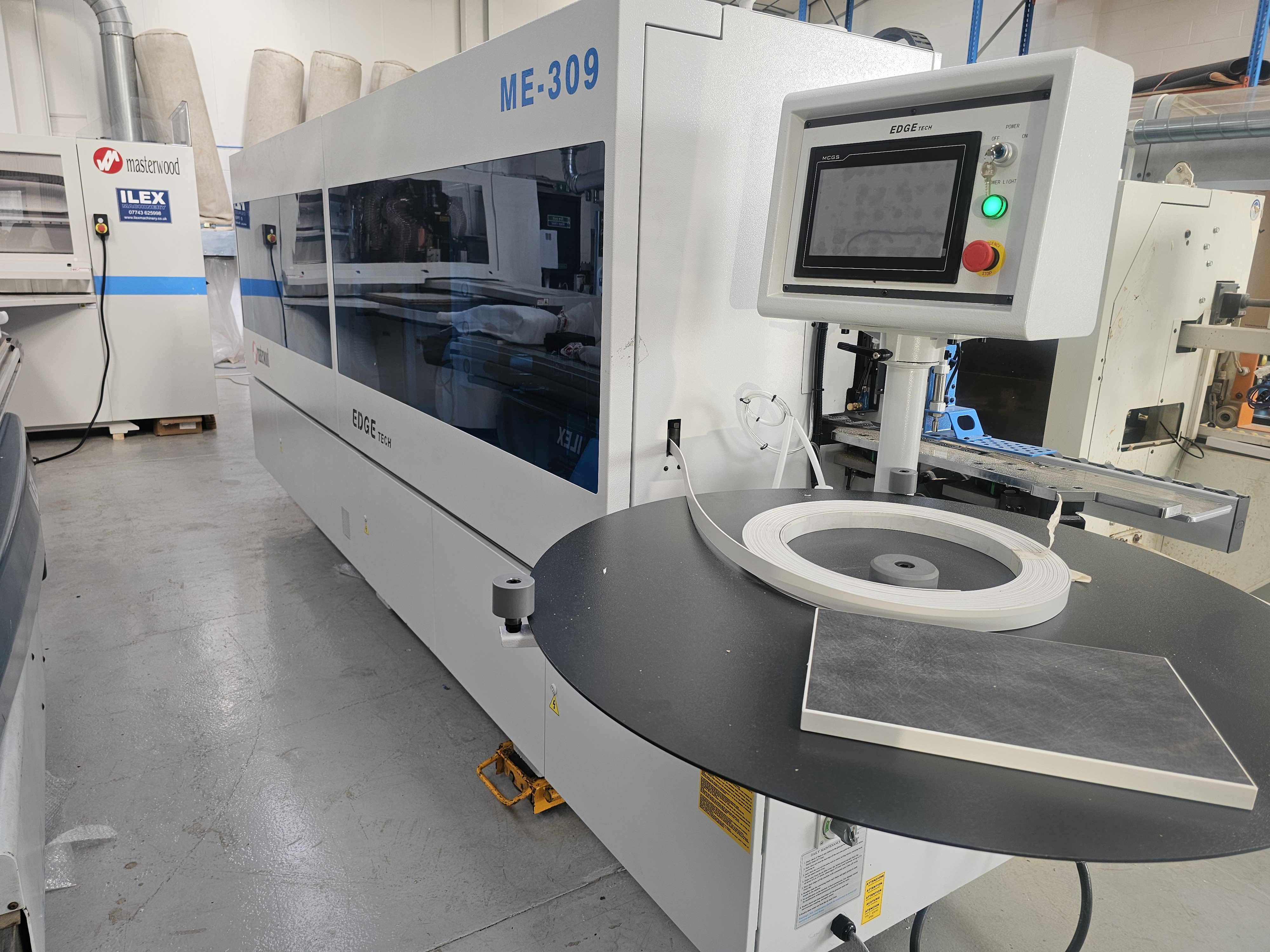

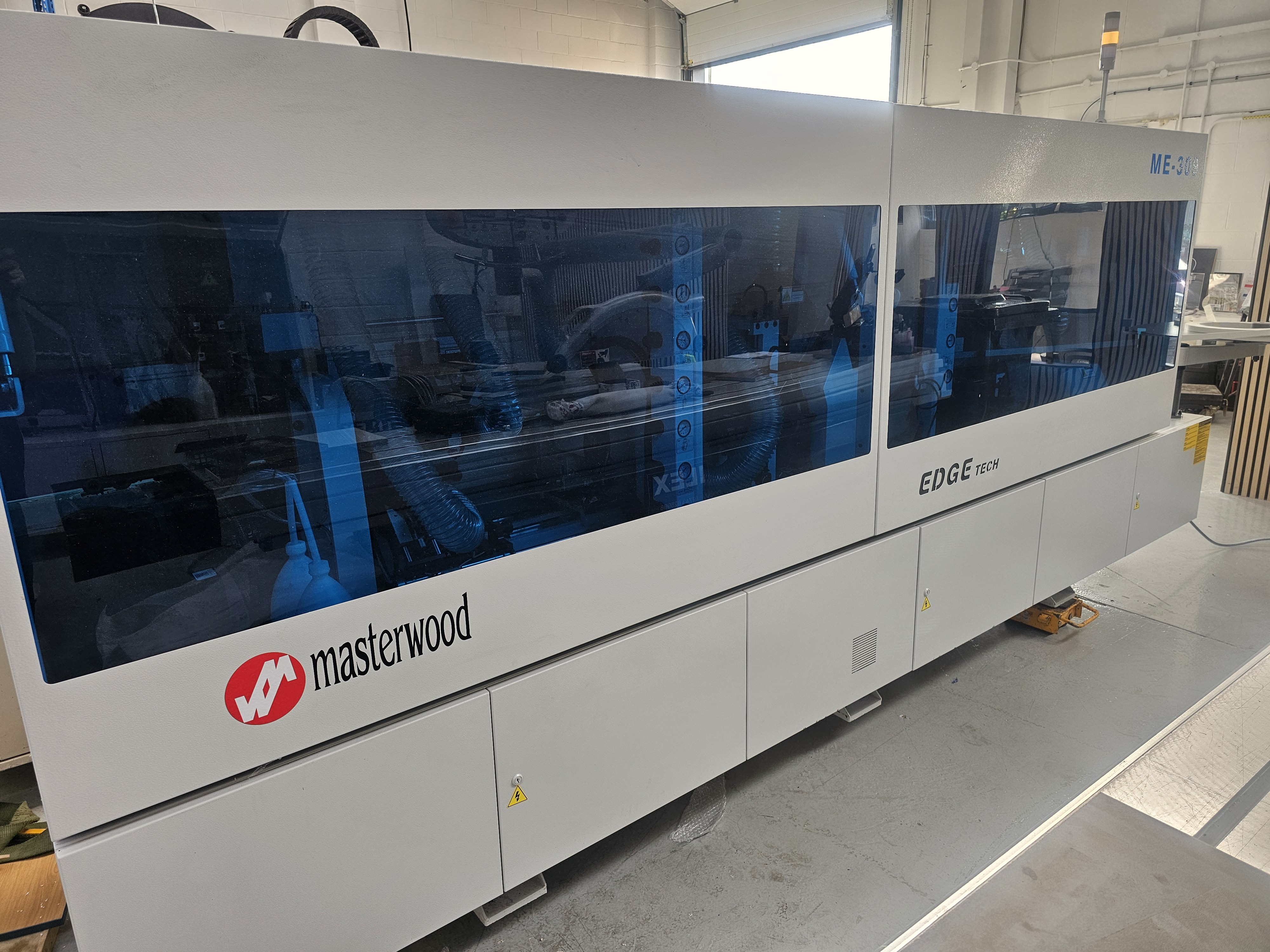

ME-309
ME-309
Automatic edge banding
Compact Size, Big Impact
Compact yet powerful, the Masterwood ME 309 Edgebander is perfect for smaller production setups without compromising on quality. Easy to operate and built for durability, it provides seamless edging with precision and efficiency.
Key Information about the ME-309
Machine Specifications
Machine Dimension |
4230 x 780 x 1690 mm |
Working speed |
8-12 m/min |
Min. panel size |
120 x 90 mm |
Panel thickness |
9-60mm |
Edge thickness |
0.4-3mm |
What's Included
Release Agent Spray
The machine has a nebulisation group at the entrance of the panel to spray a special liquid on the top and bottom edge of the panel, preparing the materials for gluing.
Pre Milling
The rectifier allows the machine to perfectly square and finish the panel incase of chips or not straight surfaces
Pre Heating Lamp
The preheat lamp helps the panel to warm up when ambient temperatures are low, it also removes humidity from the panel. This is essential for an excellent sealing of the glue on the panel and on the edge to be glued.
Pressure Rollers
The 5 pressure rollers attach the edge to the panel, The first roller is motorized and the following rollers are idle with different inclinations. The positioning of the rollers is controlled by a pneumatic position.
End Cutting
The two headers trim the excess edge in front of and behind the panel. The cutting units move precisely on two prismatic linear guides equipped with automatic lubrication.
Fine Trim
The top and bottom edge trimming unit removes excess edge to help subsequent units achieve an excellent edge finish. The group is equipped with two pneumatic positionings.
Corner Rounding
The rounder unit works with two separate motors which round the upper & lower edges of the panel. The movement of the arms is pneumatic, the structure is very robust to prevent vibration.
Edge Scraping
The edge scraper unit rounds the edge according to the required radius, works with two large copiers which allow the unit to work at high speeds. The group is equipped with two pneumatic positionings
Glue Scraping
The glue scraper unit is essential for removing any glue residues from the panel surface. Thanks to these copiers, it can also work with panels that hinge holes.
Clean Agent Spray
A special device to spray a cleaning agent on the top and bottom edge of the panel is installed. This device is placed before the brushes and optimally prepares the panels for the cotton brushes.
Buffing
The buffing unit is a device with two rotating brushes for cleaning the applied edges
Release Agent Spray
The machine has a nebulisation group at the entrance of the panel to spray a special liquid on the top and bottom edge of the panel, preparing the materials for gluing.
Pre Milling
The rectifier allows the machine to perfectly square and finish the panel incase of chips or not straight surfaces
Pre Heating Lamp
The preheat lamp helps the panel to warm up when ambient temperatures are low, it also removes humidity from the panel. This is essential for an excellent sealing of the glue on the panel and on the edge to be glued.
Pressure Rollers
The 5 pressure rollers attach the edge to the panel, The first roller is motorized and the following rollers are idle with different inclinations. The positioning of the rollers is controlled by a pneumatic position.
End Cutting
The two headers trim the excess edge in front of and behind the panel. The cutting units move precisely on two prismatic linear guides equipped with automatic lubrication.
Fine Trim
The top and bottom edge trimming unit removes excess edge to help subsequent units achieve an excellent edge finish. The group is equipped with two pneumatic positionings.
Corner Rounding
The rounder unit works with two separate motors which round the upper & lower edges of the panel. The movement of the arms is pneumatic, the structure is very robust to prevent vibration.
Edge Scraping
The edge scraper unit rounds the edge according to the required radius, works with two large copiers which allow the unit to work at high speeds. The group is equipped with two pneumatic positionings
Glue Scraping
The glue scraper unit is essential for removing any glue residues from the panel surface. Thanks to these copiers, it can also work with panels that hinge holes.
Clean Agent Spray
A special device to spray a cleaning agent on the top and bottom edge of the panel is installed. This device is placed before the brushes and optimally prepares the panels for the cotton brushes.
Buffing
The buffing unit is a device with two rotating brushes for cleaning the applied edges
